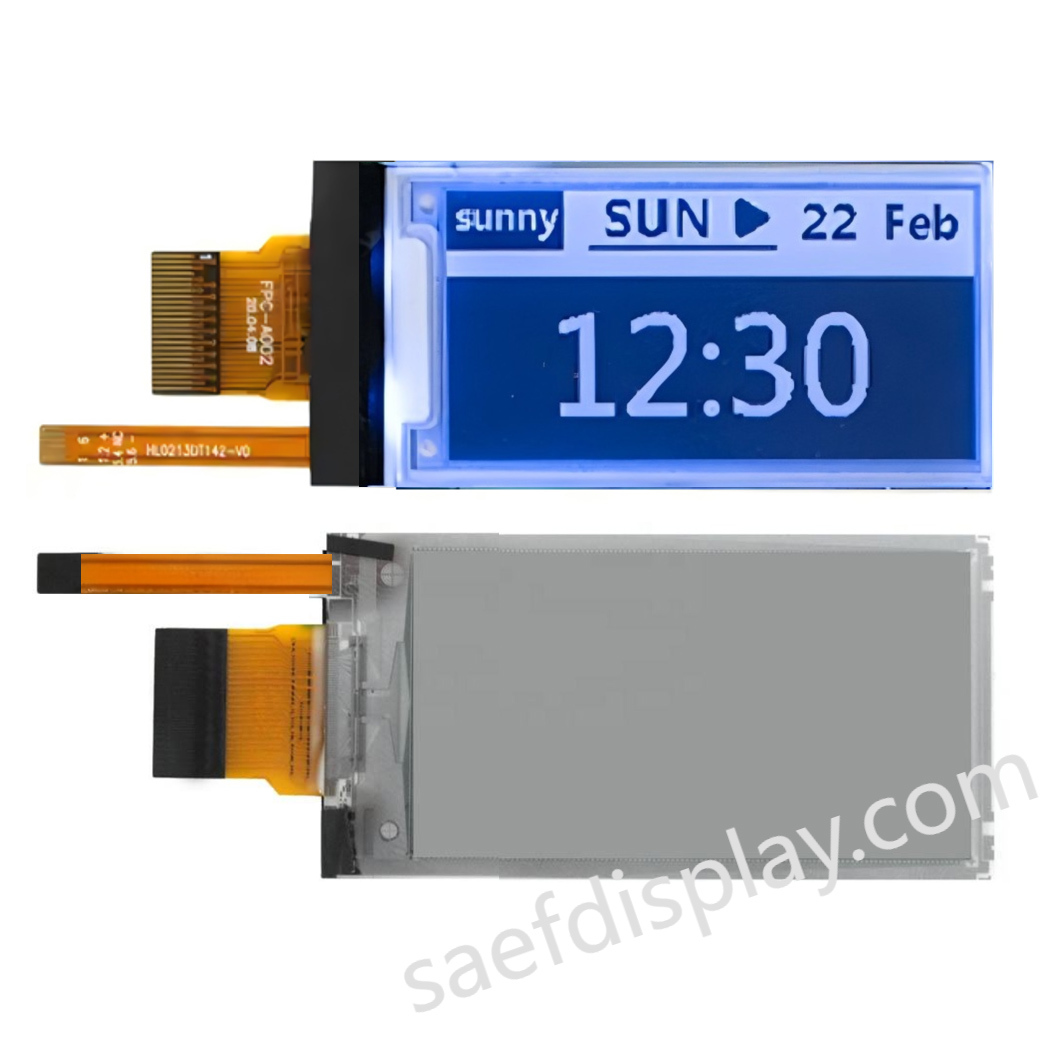

2.13" E-ink Display with Frontlight | 122×250 | 0.3s Partial Refresh | SPI Interface | Custom CTP

Name: 213quot Eink Display with Frontlight 122250 03s Partial Refresh SPI Interface Custom CTP
Brand: SAEF
Price: 7 USD

Quality 2.13" E-ink Display with Frontlight | 122×250 | 0.3s Partial Refresh | SPI Interface | Custom CTP for sale

Brand Name : SAEF

Model Number : SFE213QXBW-7353A-FL

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 units (Negotiable for sample orders)

Price : USD$４.7 – $5.7 / unit (FOB Shenzhen, based on order quantity)

Payment Terms : T/T,PayPal,T/T 50% deposit,50% before shipment

Supply Ability : 30,000,000 units / month

Delivery Time : 1–5 weeks after order confirmation

Packaging Details : Export-ready carton box

Technology : Electrophoretic E-ink (Bi-stable)

Screen Size : 2.13 inch (54.1 mm diagonal)

Special Features : Integrated Frontlight

Resolution : 122 (H) × 250 (V) pixels | 130 DPI

Interface : Configurable SPI (3-w/4-w via BS1 pin)

Refresh Time : Full Update: 1.8 sec; Partial Update: 0.3 sec

Active Area : 23.7 × 48.55 （mm）

Color : Monochrome (Black/White)

Power Supply : 10.5 mW (Typ.)

Viewing Angle : 180° (Ultra-wide)

Optical : Reflectivity: 35% (Typ.)

Operating Temp : 0°C to +50°C

Storage Temp. : -25°C to +70°C

Compliance : REACH & RoHS Compliant & Halogen Free

Customization : CTP optional via I²C, OCA lamination support

Reliability : Validated for 240 hrs at 90% RH, ±8kV ESD, UV exposure

Contact Now

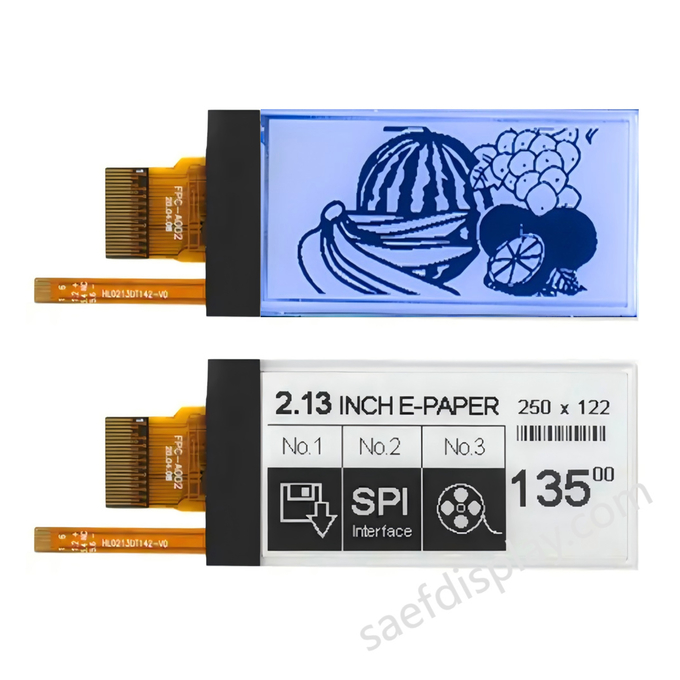

Ultra-Low Power E-Paper with Integrated Frontlight for Industrial IoT

The SFE213QXBW-7353A-FL is a 2.13" E-ink display module featuring built-in frontlight and 0.3-second partial refresh – engineered for battery-operated devices requiring sunlight readability and instant content updates. Ideal for Electronic Shelf Labels (ESL), portable medical devices, and smart sensors, it combines bistable technology (zero power to retain images) with SPI-programmable waveform optimization for extreme energy efficiency.

Key Differentiators for Harsh Environments

(1) Integrated Frontlight & Rapid Refresh

Edge-lit LED frontlight ensures uniform backlighting in low-light conditions (e.g., warehouses, night shifts).
0.3-second partial refresh (vs. 1.8s full update) minimizes UI latency during dynamic data changes (price updates, sensor readings), reducing power consumption by 70% (Page 8).

(2) Engineer-Optimized SPI Control

Dual-mode SPI (3-wire/4-wire selectable via BS1 pin) compatible with low-power MCUs (ESP32, nRF52).
Temperature-aware waveform LUT (Command 0x32) and VCOM OTP programming (Command 0x2A) eliminate screen flicker across operating temps (-25°C to +70°C storage).

(3) Custom CTP Integration for Interactive Applications

Expandable capacitive touch (CTP) via dedicated I²C pins (TSCL/TSDA) with glove/touch support.
Hardened surface: Anti-glare coating (≥6H hardness) resists scratches in high-traffic retail/industrial settings.

Technical Specifications for System Integration

Ultra-Low Power Architecture: 10.5 mW active power, 1–5 µA deep sleep (Command 0x10) for decade-long battery life.
Optical Excellence: 35% reflectivity (CIE 1931 standard), 180° viewing angle, and 8:1 contrast under 45° illumination (Page 23).
Robust Reliability: Validated for 240 hrs at 90% RH humidity, ±8kV ESD, and UV resistance (Page 24).
Slim Profile: 1.65 mm thickness with FPC stiffener for vibration-prone deployments.

Compliance & Customization

◾ EU/US Certified: RoHS 3 (EU 2015/863), REACH SVHC, and EU 2025/40 recyclable packaging.
◾ CTP Customization: OCA lamination, anti-fingerprint coating, extended temperature (-30°C~85°C).

Target Applications

Retail: ESLs, digital price tags
Healthcare: Medication trackers, portable diagnostics
Industrial: IoT sensors, warehouse logistics trackers
Smart City: Parking meters, environmental monitors

▶ Download Datasheet in this page.
▶ Request CTP Samples: Custom touch solutions with 15-day lead time.

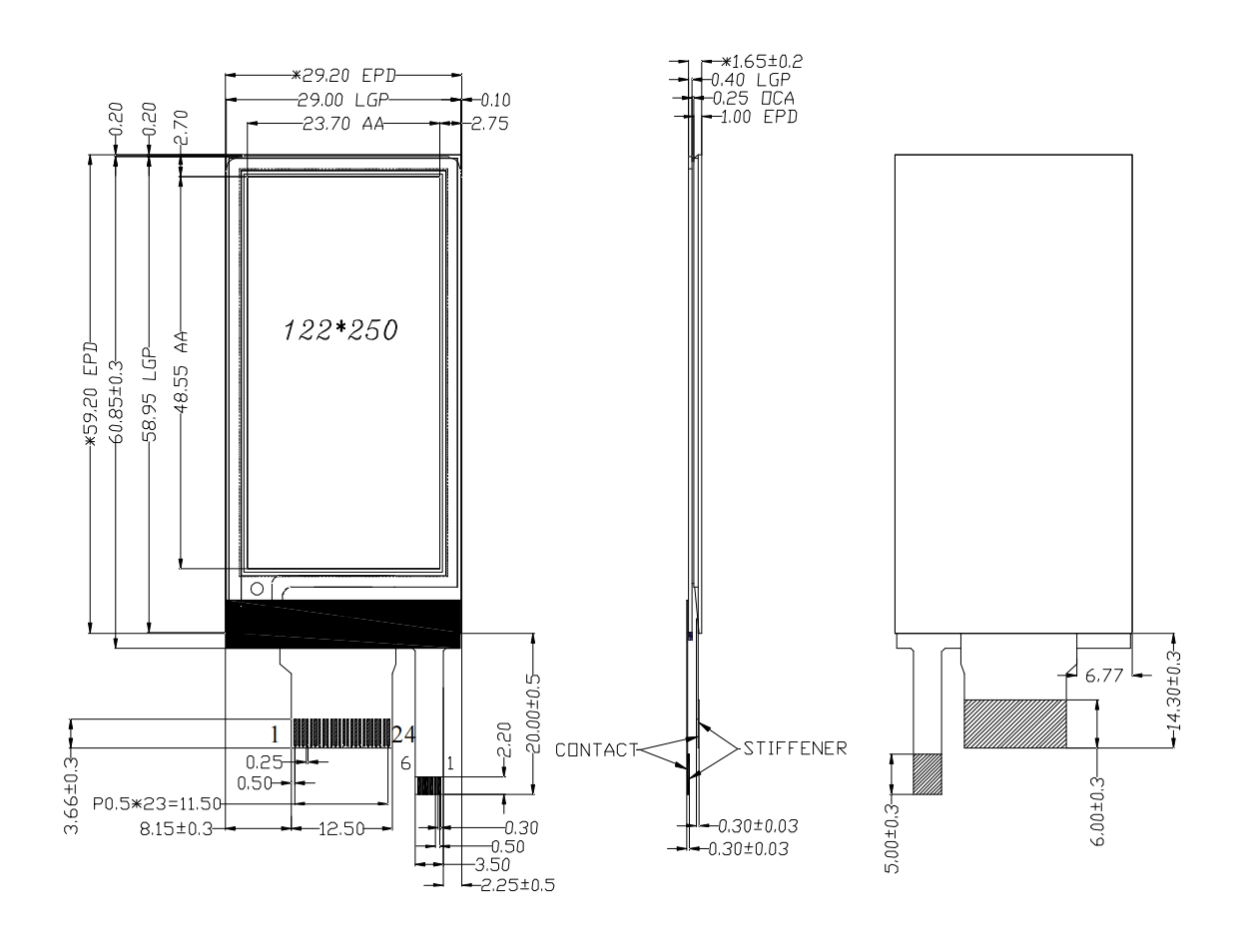

Mechanical Dimensions

Mechanical Specifications

Parameter	Specifications	Unit	Remark
Screen Size	2.13	Inch
Display Resolution	122(H)×250(V)	Pixel	Dpi:130
Active Area	23.7×48.55	mm
Pixel Pitch	0. 1943×0.1942	mm
Pixel Configuration	Square
Outline Dimension	29.2(H)×59.2 (V) ×1.65(D)	mm
Weight	TBD	g

Absolute Maximum Ratings

Parameter	Symbol	Rating	Unit
Logic supply voltage	VCI	-0.5 to +6.0	V
Logic Input voltage	VIN	-0.5 to VCI +0.5	V
Logic Output voltage	VOUT	-0.5 to VCI +0.5	V
Operating Temp range	TOPR	0 to +50	ºC
Storage Temp range	TSTG	-25 to+70	ºC
Optimal Storage Temp	TSTGo	23±2	ºC
Opt ma Storage Hum ty	HSTGo	55±	RH

Panel DC Characteristics

Parameter	Symbol	Conditions	Applica ble pin	Min.	Typ.	Max	Units
Single ground	VSS	-		-	0	-	V
Logic supply voltage	VCI	-	VCI	2.2	3.0	3.7	V
Core logic voltage	VDD		VDD	1.7	1.8	1.9	V
High level input voltage	VIH	-	-	0.8 VCI	-	-	V
Low level input voltage	VIL	-	-	-	-	0.2 VCI	V
High level output voltage	VOH	IOH = -100uA	-	0.9 VCI	-	-	V
Low level output voltage	VOL	IOL = 100uA	-	-	-	0.1 VCI	V
Typical power	PTYP	VCI =3.0V	-	-	10.5	-	mW
Deep sleep mode	PSTPY	VCI =3.0V	-	-	0.003	-	mW
Typical operating current	Iopr_VCI	VCI =3.0V	-	-	3.5	-	mA
Image update time	-	25 ºC	-	-	1.8	-	sec
Sleep mode current	Islp_VCI	DC/DC off No clock No input load Ram data retain	-	-	20		uA
Deep sleep mode current	Idslp_VCI	DC/DC off No clock No input load Ram data not retain	-	-	1	5	uA

Note 2: Image update time(full): 1.8 sec; Image update time(partial): 0.3 sec.

Optical Specifications

Symbol	Parameter	Conditions	Min	Typ.	Max	Units
R	White Reflectivity	White	30	35	-	%
CR	Contrast Ratio	Indoor	8:1		-
T update	Image update time	at 25 °C		3	-	sec
L e		Topr		t mes or 5years

Input /Output Pin Assignment

No.	Name	I/O	Description
1	NC		Do not connect with other NC pins
2	GDR	O	N-Channel MOSFET Gate Drive Control
3	RESE	I	Current Sense Input for the Control Loop
4	NC	NC	Do not connect with other NC pins
5	VSH2	C	Positive Source driving voltage(Red)
6	TSCL	O	This pin is I2C Interface to digital temperature sensor Clock pin. External pull up resistor is required when connecting to I2C slave. When not in use:VSS
7	TSDA	I/O	This pin is I2C Interface to digital temperature sensor Data pin. External pull up resistor is required when connecting to I2C slave. When not in use: VSS
8	BS1	I	Bus Interface selection pin
9	BUSY	O	Busy state output pin
10	RES#	I	Reset signal input. Active Low.
11	D/C#	I	Data /Command control pin
12	CS#	I	Chip select input pin
13	SCL	I	Serial Clock pin (SPI)
14	SDA	I/O	Serial Data pin (SPI)
15	VDDIO	P	Power Supply for interface logic pins It should be connected with VCI
16	VCI	P	Power Supply for the chip
17	VSS	P	Ground
18	VDD	C	Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19	VPP	P	FOR TEST
20	VSH1	C	Positive Source driving voltage
21	VGH	C	Power Supply pin for Positive Gate driving voltage and VSH1
22	VSL	C	Negative Source driving voltage

23	VGL	C	Power Supply pin for Negative Gate driving voltage VCOM and VSL
24	VCOM	C	VCOM driving voltage
